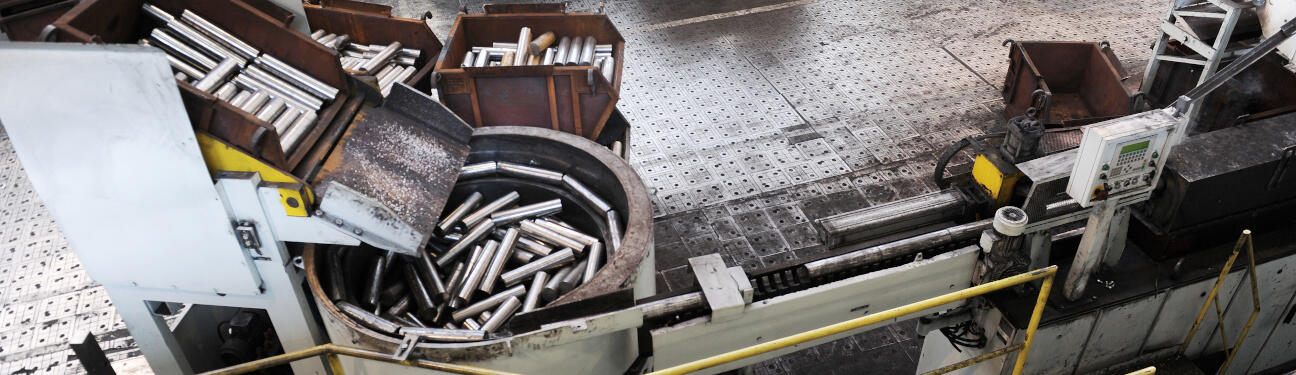

The bin tipper is used to empty material from a transport bin or cart by lifting and inverting it. The industrial use of bin tippers is various. In automatic induction heating lines the bin tipper usually spill out billets into the vibratory bowl feeder or step feeder.
We produce bin tippers of various sizes and designs with a load capacity of up to several tons. The tilting mechanism may be rotating or a combination of lifting and rotating. The large rotation angle ensures safe dumping of all material. The mechanism is usually hydraulic or chain driven. The transport bin may be loaded into the tipper by a forklift, a hand pallet truck or a crane. After loading, the bin is automatically secured against falling out.
| Application | dumping billets from transport bin into the vibratory bowl feeder |
| Load capacity | 2000 kg |
| Power | 4 kW |
| Loading height | 310 mm |
| Dumping height | 1720 mm |
| Loading | forklift, hand pallet truck |
| Mechanism | rotating |
| Rotation angle | 142° |
| Drive | hydraulic |
| Bin dimensions (L x W x H) | 1600 x 650 x 500 mm |
| Application | dumping billets from transport bin into the vibratory bowl feeder |
| Load capacity | 2000 kg |
| Power | 4 kW |
| Loading height | 1500 mm |
| Dumping height | 1870 mm |
| Loading | crane, forklift |
| Mechanism | rotating |
| Rotation angle | 142° |
| Drive | hydraulic |
| Bin dimensions (L x W x H) | 1400 x 1000 x 700 mm |
| Application | dumping billets from transport bin into the vibratory bowl feeder |
| Load capacity | 2000 kg |
| Power | 4 kW |
| Loading height | 870 mm |
| Dumping height | 2470 mm |
| Loading | forklift |
| Mechanism | lifting and rotating |
| Rotation angle | 142° |
| Drive | hydraulic |
| Bin dimensions (L x W x H) | 1250 x 800 x 700 mm |
| Application | dumping engine valve stems from transport bin |
| Load capacity | 1600 kg |
| Power | 1,5 kW |
| Loading height | 63 mm |
| Dumping height | 1030 mm |
| Loading | hand pallet truck, forklift |
| Mechanism | rotating |
| Rotation angle | 135° |
| Drive | hydraulic |
| Bin dimensions (L x W x H) | 950 x 850 x 620 mm |
| Application | dumping semi-finished products into feeder |
| Load capacity | 300 kg |
| Power | 0,55 kW |
| Loading height | 0 mm |
| Dumping height | 1400 mm |
| Loading | by hand |
| Mechanism | lifting and rotating |
| Rotation angle | 180° |
| Drive | chain |
| Bin dimensions (L x W x H) | 420 x 530 x 435 mm |
